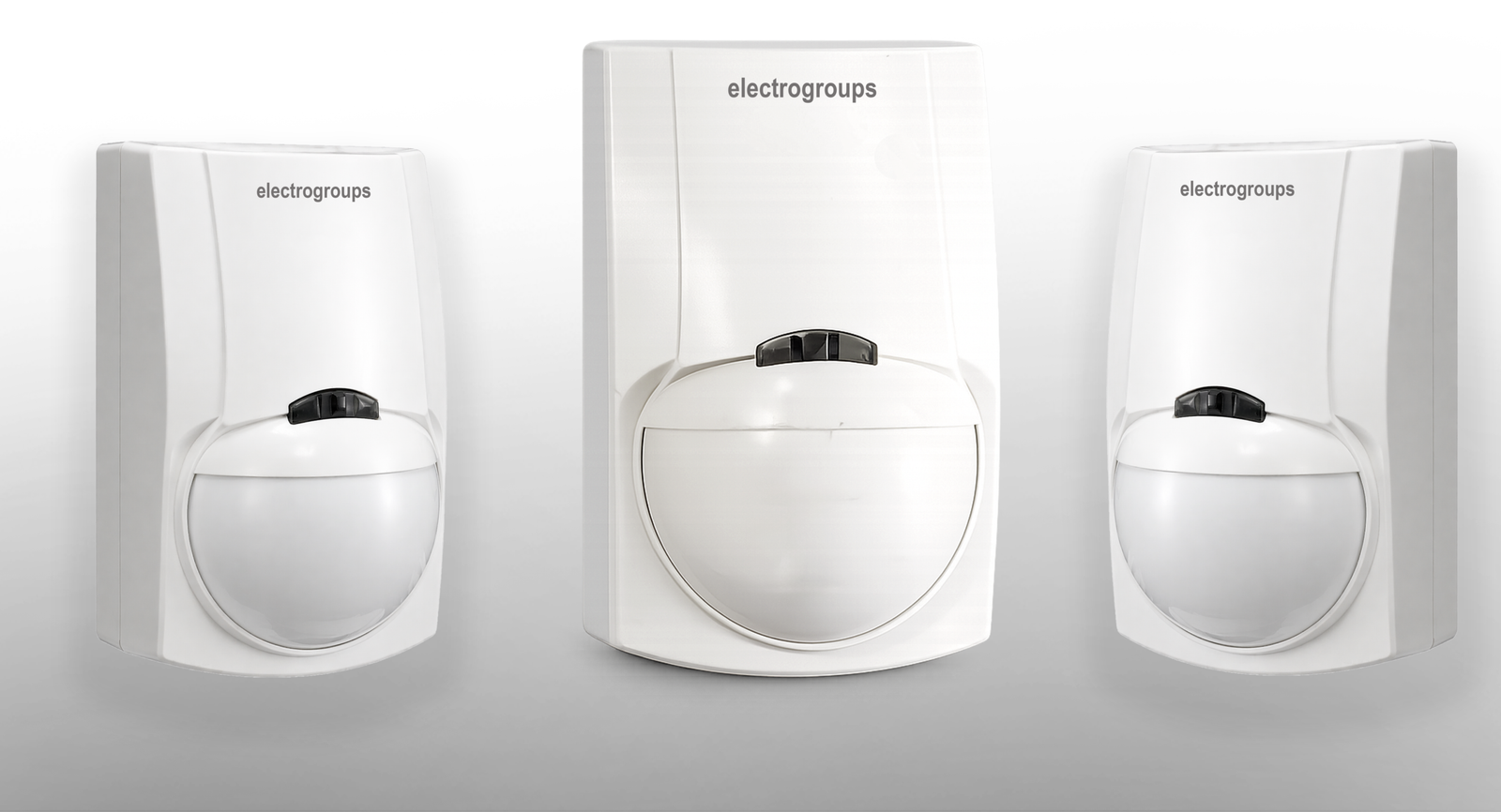

Passive Infrared (PIR) motion sensors detect motion in areas where movement is unauthorized or is not usually expected. Built on the latest DSP (Digital Sensor Processor) technology, these sensors are a part of a burglar alarm system and are connected to a control panel to send an intrusion alert when the system is armed. With a detection range of 15m, PIR Motion Sensors are perfect for indoor use, especially for offices, retail shops, and warehouses.

. Dual Element Pyroelectric Sensor

. Wall Mounted

. Detection Range 12m

. Detection Angle 110°

. Multi angle wall bracket

. ABS Housing

Homes | Retails | Banks & ATMs | Offices | Schools | Warehouses | Hospitals | Industries

Microcontroller based digital MFD specially designed for ATM application. Detects intrusion attempts on an ATM based on 4 logics, advanced sensing algorithms. Sleek ABS housing with 3 LED indicators. *NEW sleeker design with advanced digital technology*

Passive Infrared (PIR) motion sensors detect motion in areas where movement is unauthorized or is not usually expected.

Detection method Passive infrared

Coverage 12m x 12m(40ft x 40ft) 85°wide

Detection zones 78 zones

Mounting height 1.5 to 2.4m (5 to 8ft)

LED alarm indicator Switchable ON/OFF

Alarm period Approx. 2.5 sec

Alarm output N.C., 24VDC 0.2A max.

Tamper switch N.C., Open when cover is removed.

Tamper output 24VDC 0.1A max.

PIR sensitivity/range Switchable LOW/MID/HI

Warm up period Approx. 30 sec

Power input 9.5 to 16VDC

Current consumption 8mA (normal), 11mA (max.) at 12VDC

Dimensions H93.4mm x W61.4mm x D46.0mm

Weight Approx. 70 g (with bracket: 90 g)

Operating temperature -20°C to +50°C (-4°F to +122°F)

Environmental humidity 95% max.

RF interference No alarm 10V/m
