Choose ElectrogroupsIndia as your trusted partner for high-quality beam smoke detectors. Designed with advanced technology and precision engineering, our solutions provide reliable fire detection for large and complex environments.

Get in touch with us to discuss your requirements, request a quote, or schedule a consultation with our team. Electrogroups India offers a comprehensive range of dependable and high-quality products, engineered for long life and consistent performance to strengthen your fire safety systems.

CONTACT US

    Product Overview

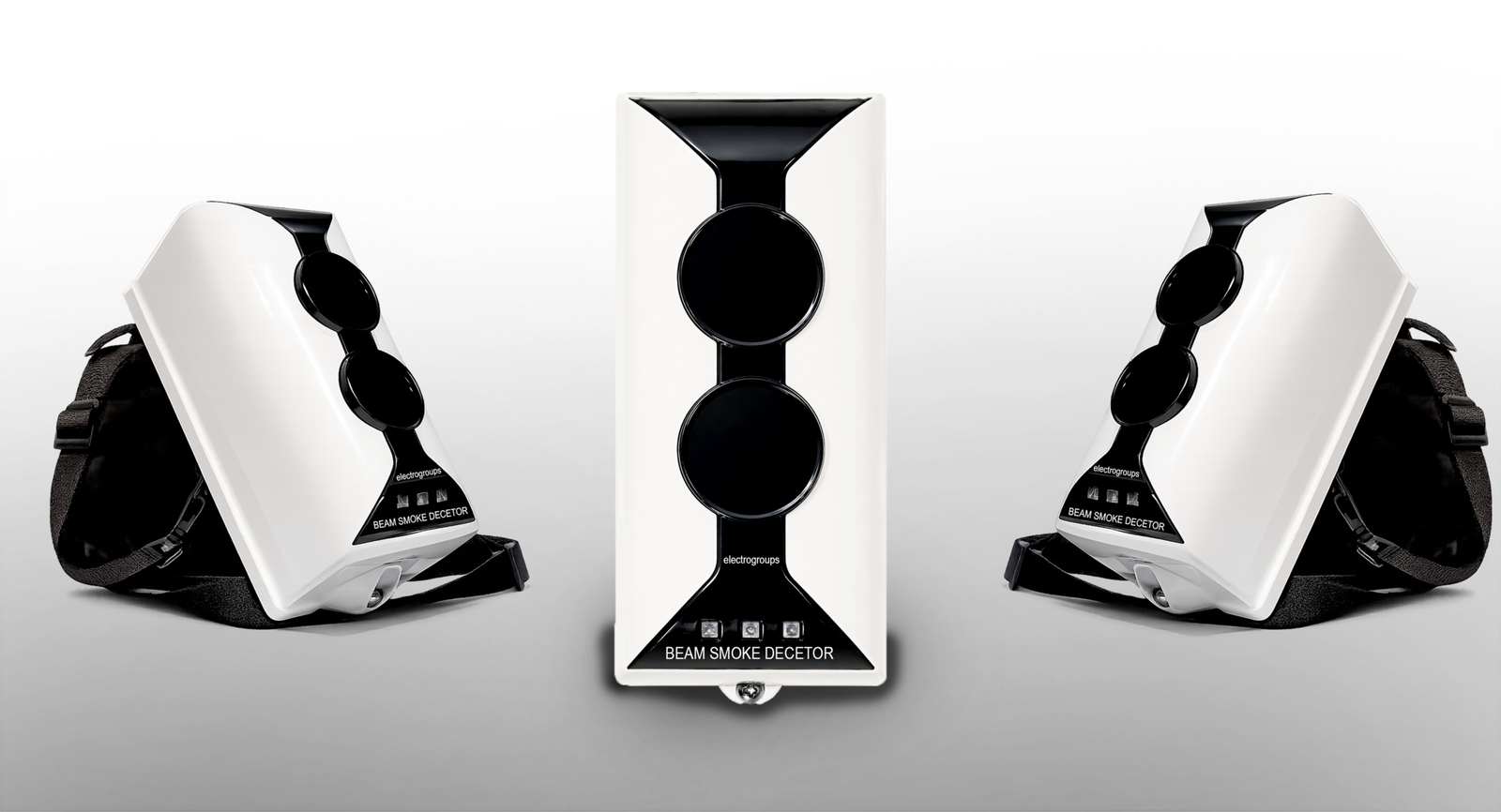

    At ElectrogroupsIndia, we offer advanced Beam Smoke Detectors designed for large-area fire detection with high accuracy and reliability. Utilizing an optical pathway ranging from 30 to 100 meters, this detector is ideal for wide spaces such as warehouses, factories, auditoriums, and commercial buildings where conventional detectors may not be practical.

    The system is intelligent fire and fault detection with self-diagnostics and drift free compensation using a built-in microprocessor. The Transceiver is a transmitter and receiver in one compact housing, making installation easier. An onboard laser and a digital signal indicator aid in aligning the beam and ensuring proper operation. Three sensitivity options and a tough housing provide reliable performance in harsh environments.

    . 24V powered.

    . Optical Pathway 30 -100 Meters.

    . Maximum monitoring area: 14 x100=1400m2

    . Maximum width: 14m

    . Combination of the emitting and receiving part makes mounting easy and optical pathway accurate.

    . Built-in microprocessor enables intelligent judgment about fire alarm and fault.

     . Easy alignment and commissioning via supporting of onboard laser pointer and digital signal intensity indication.

    . Self-diagnostic function can monitor the internal fault.

    . Drift compensation for factors changing, such as a certain of dust accumulation, positional excursion, and ageing transmitter.

    . Onboard N/O fire output and N/C fault dry contact output

    . OPERATING VOLTAGE                         : 24VDC (18V~28V) Commissioning current: ≤ 20mA Standby current: ≤ 12mA Alarm current: ≤ 22mA

    . Angle of Adjusting                              : -6°to +6° Maximum angular misalignment ±0.5°

    . Sensitivity Level:                                 : Level 1: 1.3dB , Level 2: 1.8dB (factory default,  Level 3: 2.3dB , Level 4: 2.8dB

    . Operating Environment                    : Temperature: -10°C - +50°C ,Relative Humidity≤ 95%, non- condensing

    .  Ingress Protection Rating                : IP20 without glue-seal  IP66 through glue-seal treatment

    . Material and Color of Enclosure     : ABS, gray

    . Dimensions                                         : 206mm X 95mm X 95mm

    . Weight                                                 : 450g

    . Ideal for large and open spaces

    . Reduces installation complexity and cost

    . Ensures accurate and reliable fire detection

    . Easy setup and maintenance

    Looking for a best-quality Beam Smoke Detector
    Ensure safety with trusted solutions from Electrogroups India.
    Contact us today to get the best products and expert support you can rely on..
